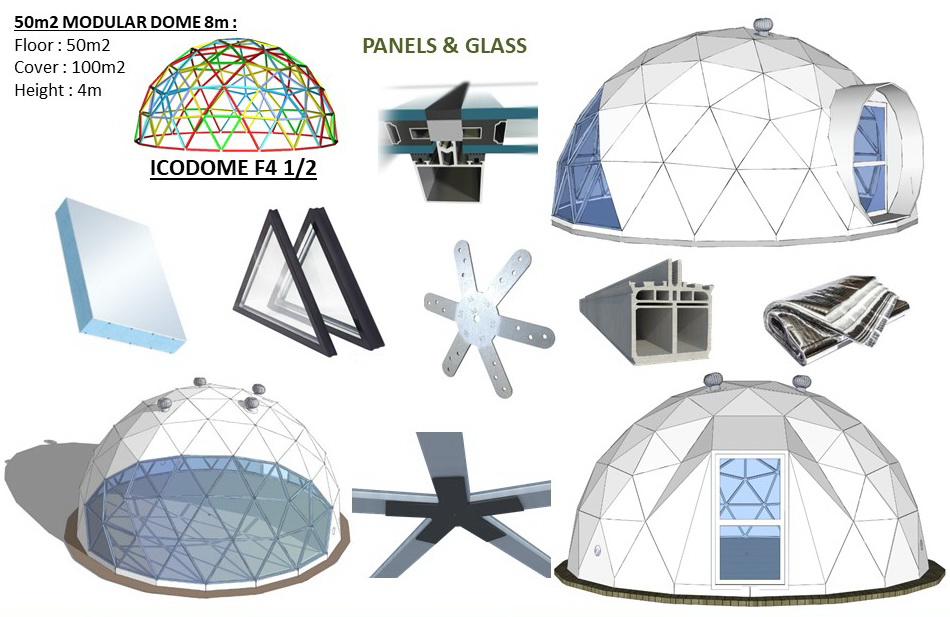

50m2 MODULAR Ø8m ICO F4 H4m

DOME PROPERTIES :

Frequency: 4V|F
Height: 4 m
Diameter: 8 m
Floor Area: 50 sqm
Cover Area: 100 sqm

Produkt dostępny na zamówienie

Certyfikowana konstrukcja
Produkcja na Litwie
Konsultacija 2–4 val.

DOME PACKING

Waga	1900 kg
Wymiary	120 × 200 × 200 cm
packing	2x Euro Pallet
shipments	Door-To-Door, Cargo Transportation, Sea containers

DOME ORDER NOTES

Production and order picking of BASIC SET : 10-13 weeks.
Dome assembly documentation include.
Set sealed on pallet, disposable packaging. Parts marked, shipped from Vilnius warehouse EXV, Lithuania.
Delivery and installation work are not included in the price. After checking the manager will give you a special offer for additional services.
Warranty 3 years, service life 20-50 years for different materials.
Place an advance order and we will contact you.

PARTS OF BASIC KIT | MULTILAYER WALL SYSTEM | FULL PACK FOR ALL-SEASON

FRAME
COVER
WINDOW
DOOR
MULTILAYER
THERMO
INTERIOR

FRAME SYSTEM | STRUCTURAL FAÇADE |

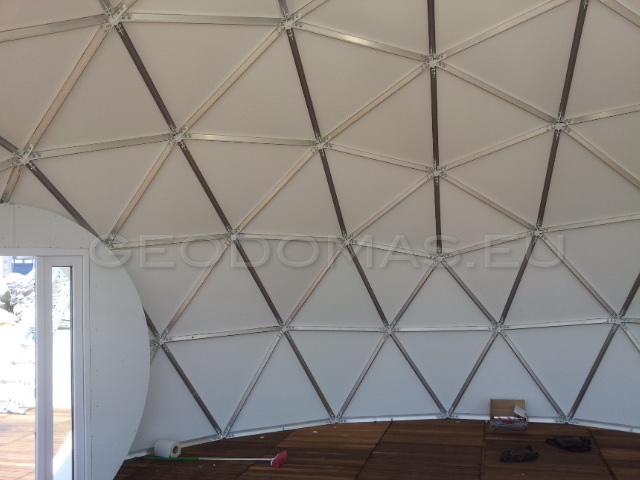

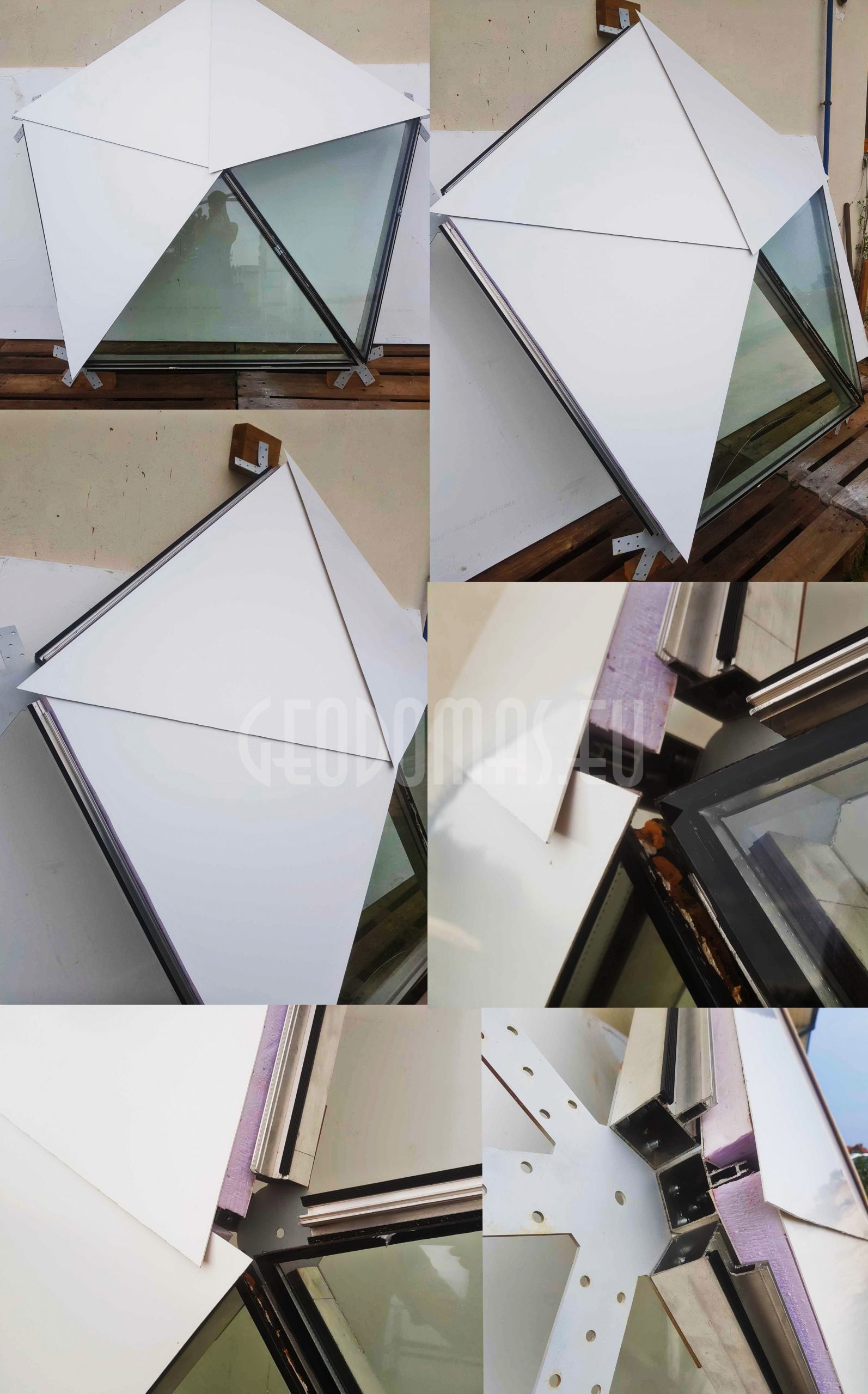

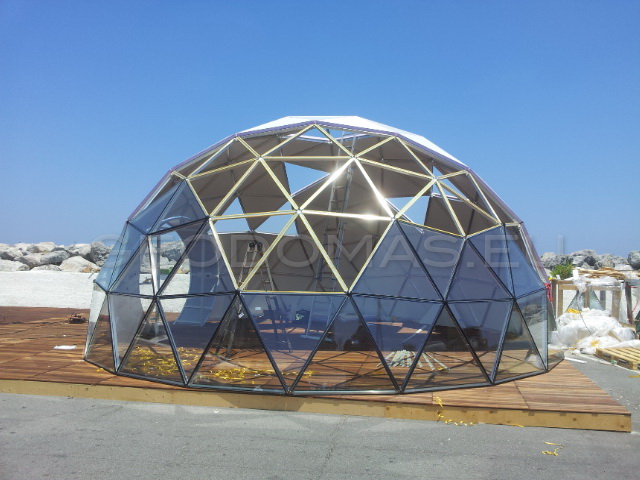

The construction carcass is produced from aluminum structural profile parts for structural facades, the parts include a sealing rubber, fixing kit. Steel connection hubs: STAR type – 4-5-6 directions, powder painted. A set of steel WURTH rivets 6.4 mm for carcass construction.

Each geodesic dome structure is designed according to load calculations. This in turn ensures safety and durability. Our structural engineers can calculate the maximum loads of the equipment suspended by the geodesic dome of regional norms
Dome covering, plastic tension membrane

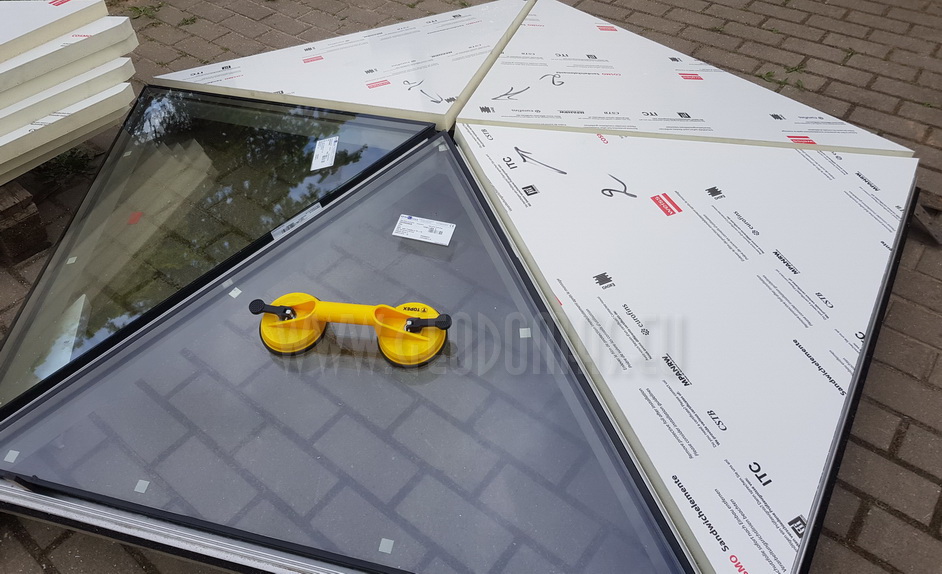

Triangular shaped panels, façade slabs COSMO PANEL 25mm (Basic option), PVC-XPS-PVC structure of panels. Fastening elements for the slabs with a gasket. Installation glue set for seal treatment. White facade sealant-glue for the finishing and decorative works. A tin perimeter window sill for the waterproofing of the foundation. Gravitational ventillation system at the lower perimeter of the dome. A full installation set, and documentation for facade assembly.

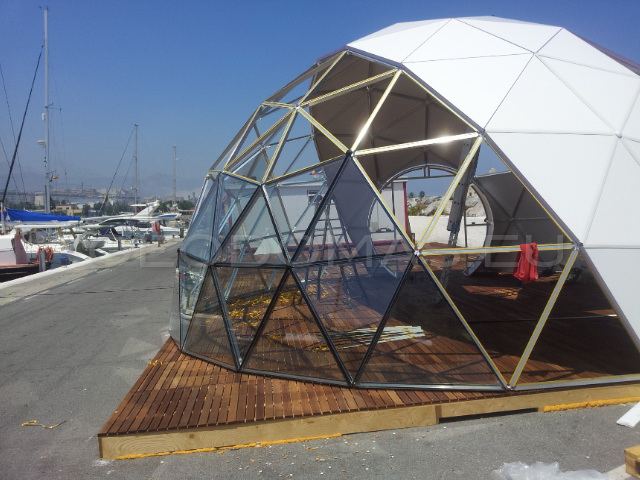

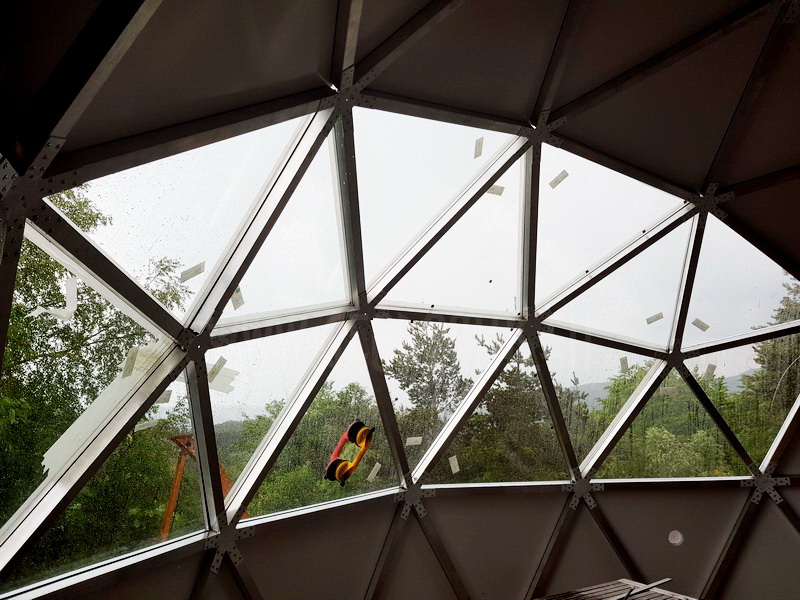

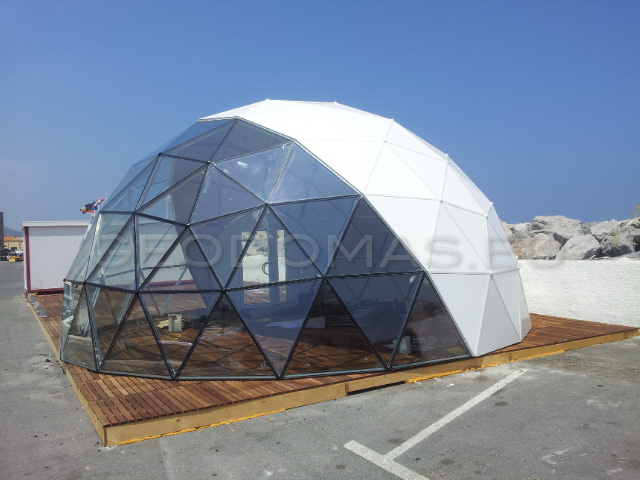

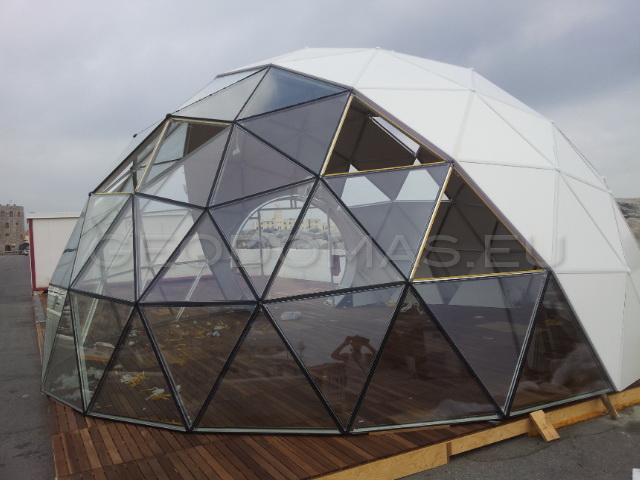

Basic Kit | DOUBLE GLASS PANELS | 6mm Glass – 18mm ARGON90% – 44,1 EN2PLUS laminated

Triangular windows glass laminated packet parts for corner roofs glass facades. The exterior glass is tempered, the thermo-frame has high moisture resistance, the internal 2 glass layers are laminated, safe glass. SOLAR CONTROL Glass packet with thermo coating for better heat insulation of the packet.
- Packet thickness: 6mm/16mm/4+4mm (30mm).
- Thermal conductivity UG: 1,12 W/m2.
- A set of bands for seal insulation. Installation glue set for seal treatment.
- A set of tin finishing parts with seal waterproofing.
- Seam insulation materials.
- A full installation set, and documentation for facade assembly.
- All elements marking and special glass packaging.
TRIPLEX GLASS PANELS | 6mm Glass – 16mm ARGON90% – 6mm Glass – 16mm ARGON90% – 44,1 EN2PLUS laminated

Triangular windows glass laminated packet parts for corner roofs glass facades. The exterior glass is tempered, the thermo-frame has high moisture resistance, the internal 2 glass layers are laminated, safe glass. Glass packet with thermo coating for better heat insulation of the packet. Thermal conductivity UG: 0,5-0,8 W/m2.
- Packet thickness: 6mm/16mm/6mm/16mm/4+4mm (50mm).
- Thermal conductivity UG: 0,7 W/m2.
- A set of bands for seal insulation. Installation glue set for seal treatment.
- A set of tin finishing parts with seal waterproofing.
- Seam insulation materials.
- A full installation set, and documentation for facade assembly.
- All elements marking and special glass packaging.
ABOUT GLAZED WINDOWS :

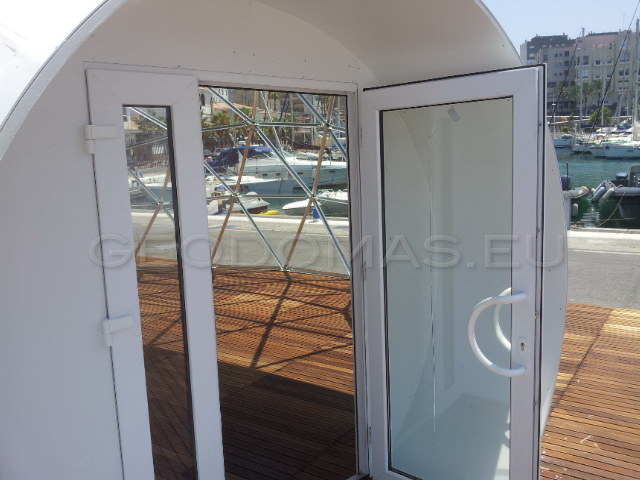

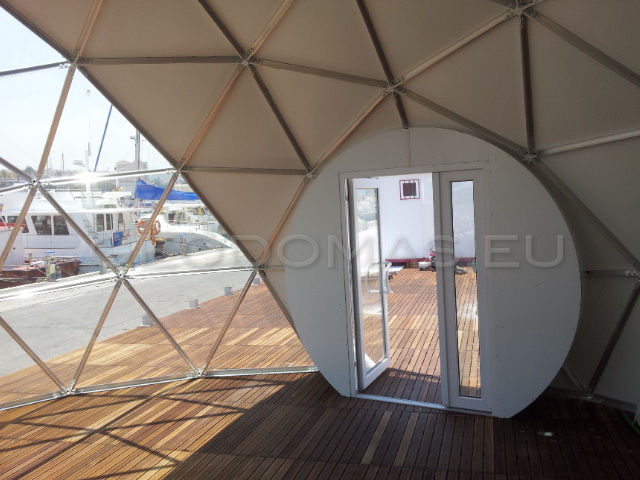

STANDARD SINGLE-OPENED DOOR SYSTEM

The main advantage of 71mm PVC profile doors is their excellent insulation. They are resistant to damages and protect the house from burglars.
- PVC doors have a multi-point security lock.
- They are strong and secure.
- PVC doors come with a glazing packet
- It has a very simple maintenance.

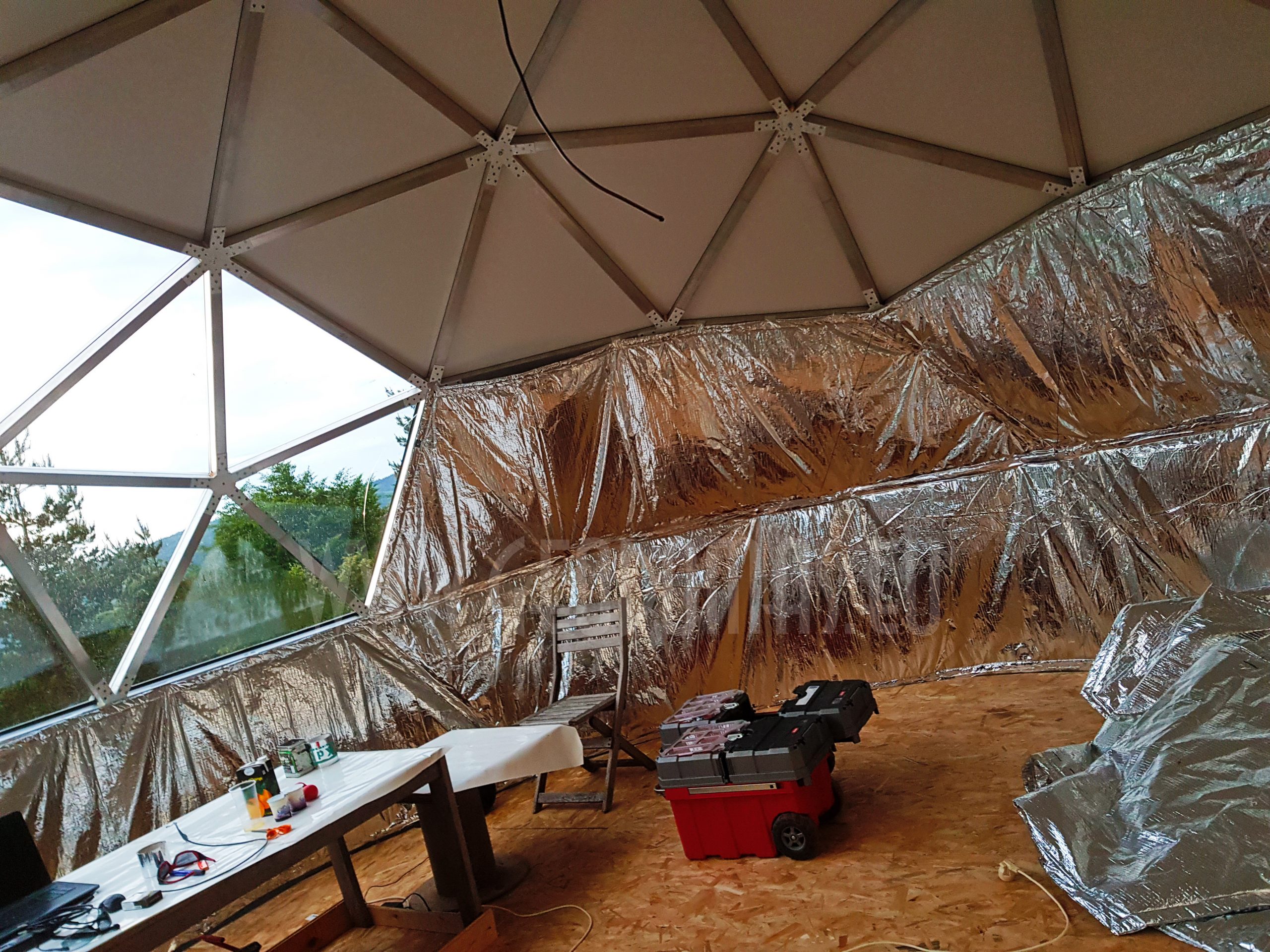

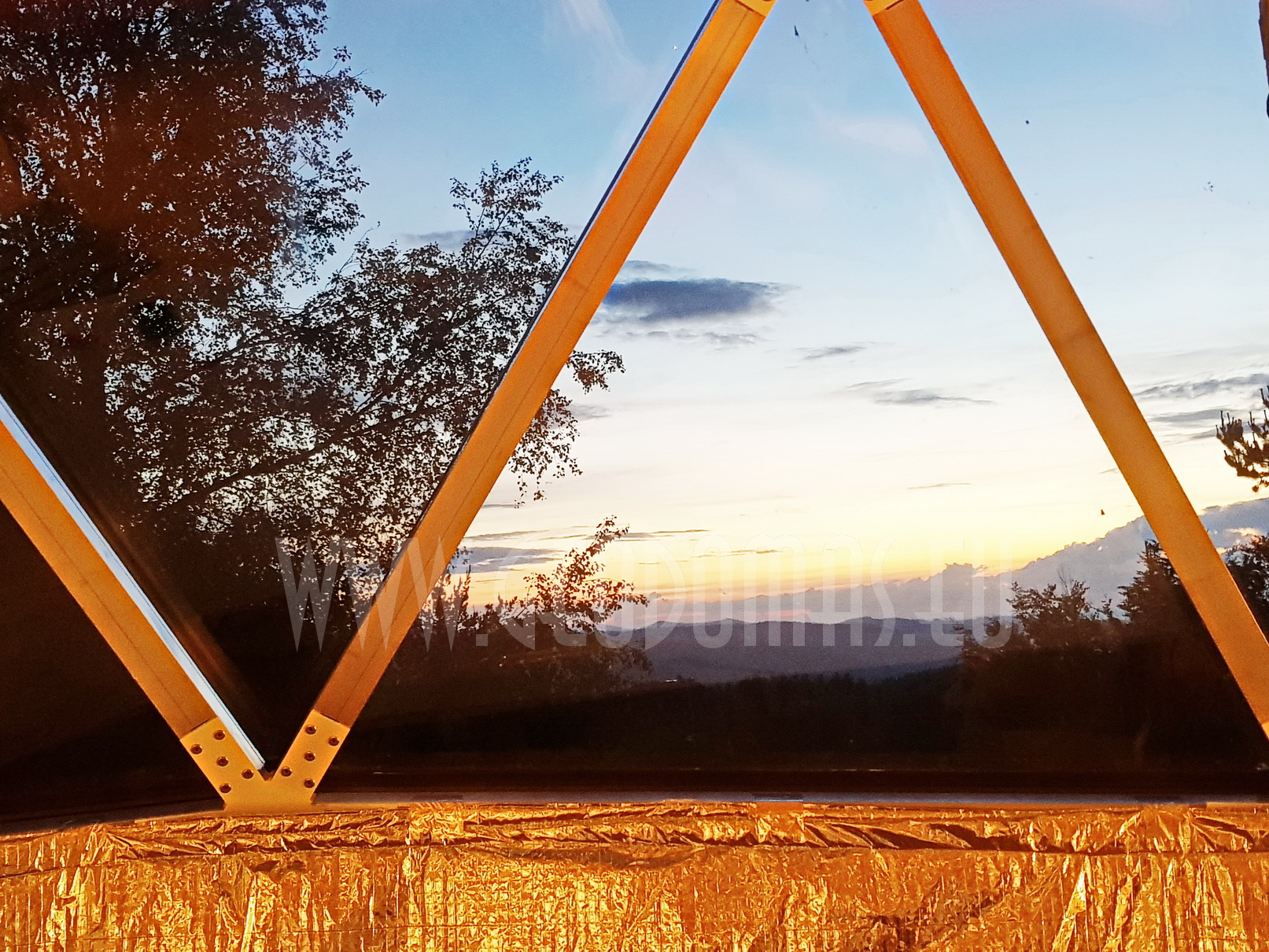

Multilayered thermal insulation of dome wall, with air chambers. Thermal insulation membrane – Basic Set : Thermo 13 layer (0,033W/m2K). Parts for internal insulation of the dome wall, waterproof material.

It is thin, multi-reflector, multi-layer insulation system. Reflective thermo insulation material is produced using the technology that NASA has developed to protect the spacecrafts from extreme external factors (solar radiation and frost).
- Insulation saves energy because it reduces all types of heat: conduction, convection, radiation, heat, humidity infiltration;
- Stability, insulation parameters in contrast to traditional insulating materials, there are no splits, material is continuous;
- Energy saving – insulation saves up to 30% of the energy for heating and cooling;
- Fast assembly – large rolls, simple system, combining consistent levels and flexibility of the material enables efficient assembly of the product in all conditions;
- THERMIC.PRO- resistant to chemicals, rodents and other pests, as well as most solvents that are used in construction;
- Reflectivity: 95%
- Thermal conductivity: λ = 0,030 W / (mK)
- Blocks Cellular 3G,4G,5G & WIFI Signals

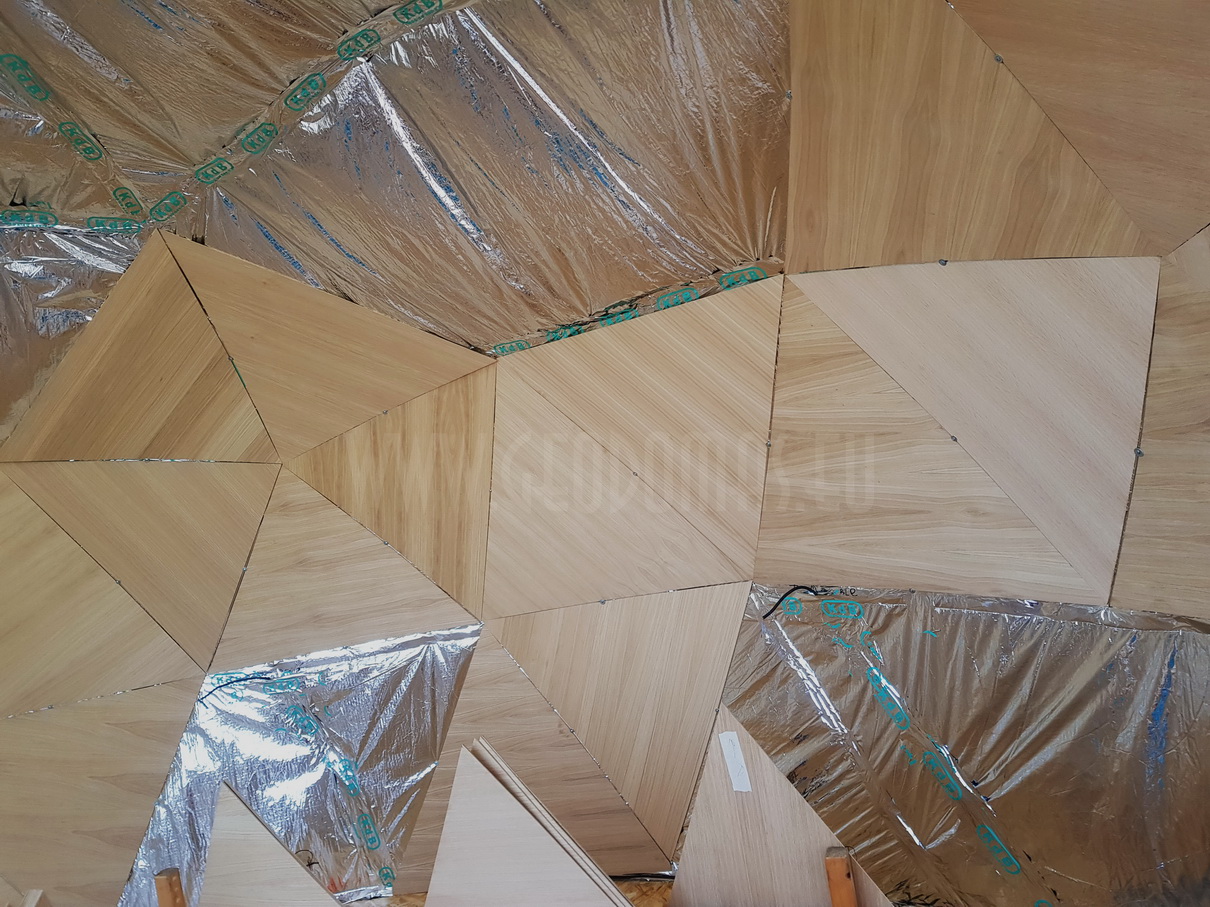

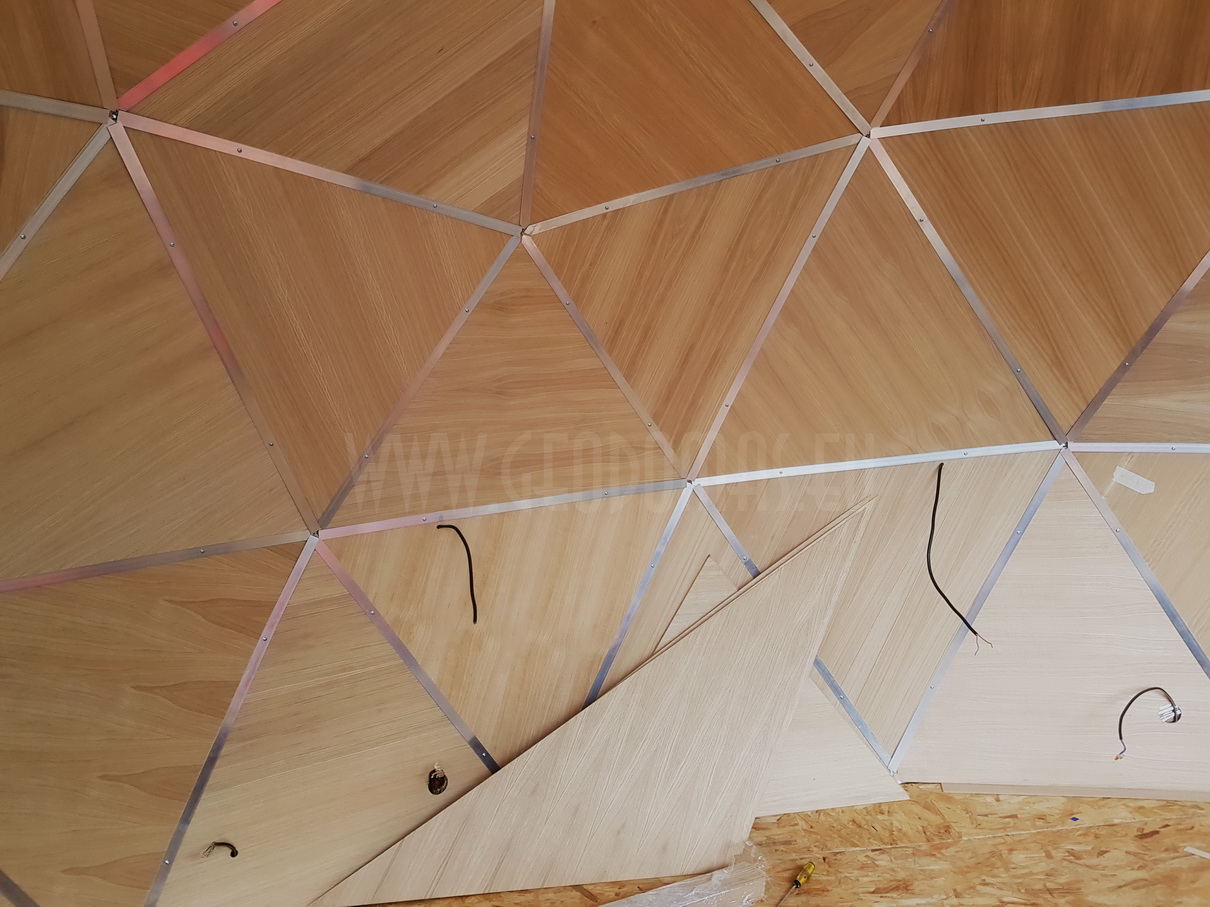

Triangular parts for interior finishing. Wall MDF panels 4mm( Basic Set) with natural wood cover. A set of fastening parts, decorational aluminum strip, seal decoration. Round MDF parts for connection decoration. A full installation set.

MDF (Medium Destiny Fiberboard) is now one of the most commonly used composite boards for dome interior and it’s easy to see why.

When cut, it tends to leave a relatively smooth edge unlike some timber boards that split and splinter, and the overall finish achieved when edged or painted can be of a particularly high standard. It’s dense, heavy and durable under most conditions.
